FlexiMod – Individuality in the standard module

FlexiMod – Individuality in the standard module

FlexiMod offers a simple concept to integrate custom solutions for electrohydraulic applications, while main-taining the advantages of continuous deliverability of standard solutions and the individuality of customer-specific designs.

Under the guiding principle “parameterization instead of programming”, W.E.St. Elektronik GmbH has developed the script-based concept, “FlexiMod” which eases the implementation of customer-specific functions in a commonly available product line. The concept is based on a standardized hardware architecture with a core of basic control functions and a flexible engine that complements the base with user defined operations. Due to the simplicity of the script-based engine, there are almost no programming skills required to compose custom solutions.

In its basic configuration all input signals like process and setpoint values are simply mapped 1-to-1 to the available outputs, either analogue outputs or the power stage output directly controlling the valve.

The actual function for meaningful processing of the signals can be freely defined by the script. No programming knowledge or experience with common PLC programming languages is required. The script editor is clearly divided into rows and columns, with each row basically reflecting the result of an operation and each column defining the input signals of the operation. These are then processed cyclically line by line from top to bottom.

The script provides logic operators, time functions and mathematical operators as well as some special func-tions. With this it is possible to extend functionality from generating a simple saw tooth signal profile to more complex tasks, such as closed loop controls.

We also offer variants that already provide a basic functionality as factory default, for example for positioning control. This basically allows to immediately get into the customization part of the design by implementing individual operations within the pre-set control function without having to implement the baseline positioning task first.

The script environment “WestScript” is available as a free download. It allows online and offline configuration as well as simulation. The integrated oscilloscope tracks the signal curves of up to 4 different operations offline during implementation or online during com-missioning and operation. So that the behavior can be validated and, if necessary, be adjusted prior or during commissioning and maintenance.

The hardware architecture of the new series offers a new core with higher processing power that allows a constant cycle time of not more than 1ms, independ-ent of the length of the script. FlexiMod is a platform-based solution and re-uses expansions of our current platforms, so that we can provide e.g. derivatives with or without power output stage or network connectivity from stock. The base comes with analog and digital inputs/outputs which can be assigned flexibly to process and setpoint signals via the configuration in the script. That means that, that in many cases, additional PLC hardware such as analogue I/O units are no longer necessary.

When individual solutions are requested, they are usually provided as order-based engineering service by component manufacturers or implemented in a PLC program at high efforts. In both cases, the related expenses in terms of cost and time to implement the function as well as the requirements related to HW performance and expertise of the implementing per-sonal are not insignificant. It is not unusual that it takes months. In contrast, the effort involved in script de-velopment is reduced to days or maybe a few weeks. W.E.St. Elektronik offers both the service to develop scripts for customers upon request and the assistance/guidance for customers developing their own script. It is also possible to get an OEM version of the product, which already has the individual configuration on board as factory default.

Due to its flexibility and adaptability FlexiMod can be considered the swiss-army-knife of electrohydraulic controls that can be utilized to execute many differ-ent control tasks. It is ideal e.g. as functional replacement for control units when machines are renewed or repaired to reproduce the previous functionality with a more contemporary solution.

An advantage that system integrators and/or machine builders typically benefit from is that with just a few catalog numbers, different configurations can be mapped, which are integrated into different variants of your systems/machines. At the same time, the logistics related to procurement and warehousing become easier, since only one hardware basis must be kept on stock instead of different derivatives.
The first devices with the FlexiMod Engine are DSG-112-U, with analog outputs, and DSG-112-P, with power output stage for direct control of valve mag-nets. They are completely free configurable and pro-vide the full FlexiMod capability.

WPC-300 4.0 – Simpler and more efficient configuration and monitoring

WPC-300 4.0 – Simpler and more efficient configuration and monitoring

W.E.St. Elektronik GmbH has enhanced its intuittive configuration software to ease and accelerate start-up and diagnostics procedures even more. Generally software based solutions haven become an essential tool complementing screw drivers and voltmeters to reduce downtown during commissioning and maintenance phases. With WPC-300 I/O Data as well as target values can litterly be caught at the same time, together with oscilloscope showing and recrding live values. The software is compatible with all previpous and current versione of our products. So no trouble to find the compatible version to connect to an installed device. Download WPC

IoT enabled allrounder for pressure regulation and positioning UHC-126-U

IoT enabled allrounder for pressure regulation and positioning UHC-126-U

The universal hydraulic controller with Profinet, Profibus or EtherCAT interface

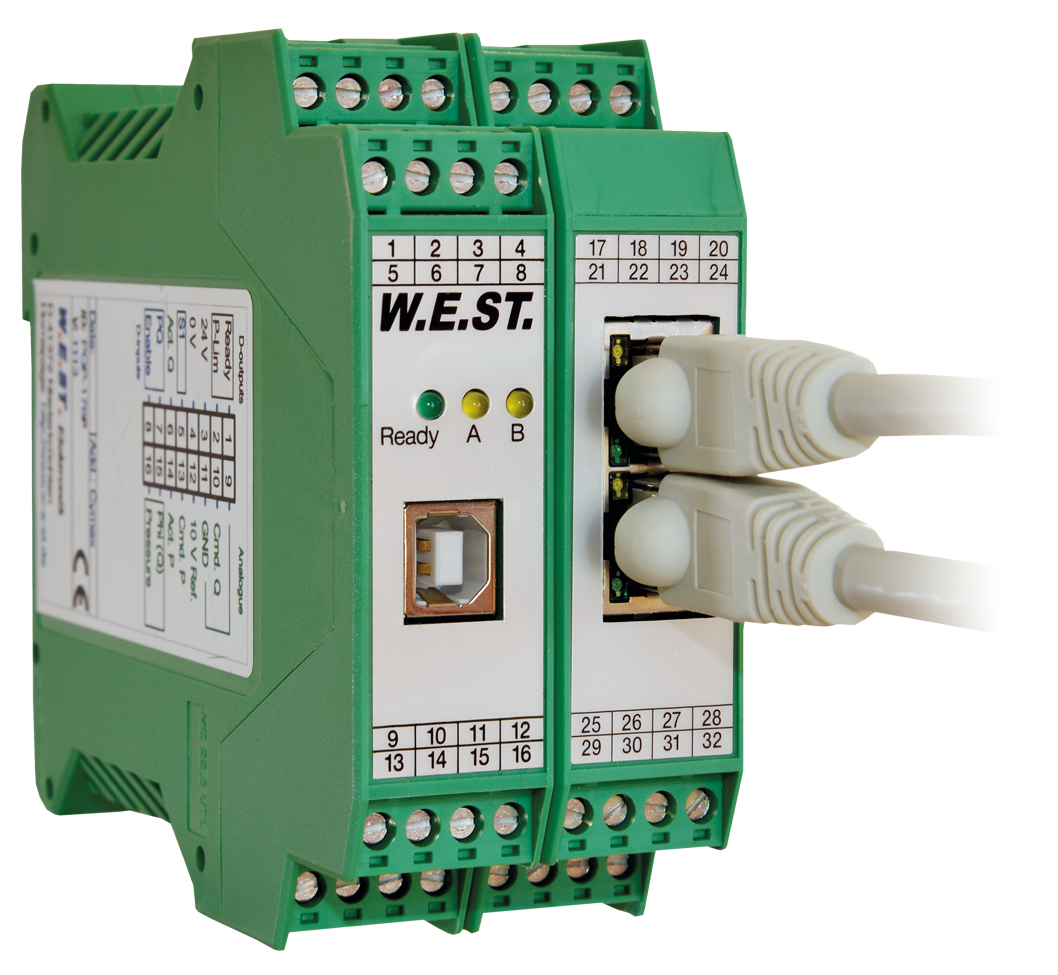

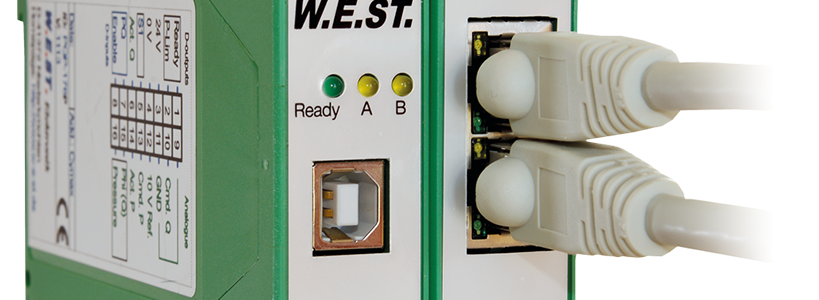

UHC-126-U

This electronic module for position and pressure control is controllable via the Profinet/Profibus/EtherCAT interface and it can be integrated in the existing control system simply and quickly. Function blocs for the PLC S7 are available. The position controller was revised in order to fulfill special requirements. Best dynamics and highest position accuracy are the result of this development.

Technical Data: UHC-126-U

In addition to the standard positioning, the following options are implemented:

  • Direct control, at any time the command position can be changed via fieldbus
  • Rapid/creep speed for automatic drive of predefined profiles
  • Drift compensation for a correct zero-point adjustment, controllable via fieldbus
  • Accurate positioning to compensate positioning deviations caused by external forces
  • Stroke dependent deceleration or NC control
  • P or PT1 position controller, for stable and dynamic positioning
  • Acceleration feedback for stabilization of critically controlled axes
  • MR-Control function to linearize the hydraulic axis. An absolute linear behaviour, controlled by the robust MR function can be activated.
  • Simplified and intuitive parameterization

Additionally, a PQ pressure control function can be activated (with or without position control). In PQ mode, typically both pressures will be measured to build the differential pressure.

Functionality:

  • optimized PID controller
  • a dynamic integrator can be activated to minimize pressure overshoots
  • two switchable PID parameter sets

The interface to the PLC is a Profinet interface. In view of Industry 4.0, all command values and all feedback (process data) are available in the protocol. Parameterization of the module via the bus is also possible.

W.E.St. Elektronik GmbH – setup for future!

20 years after founding the W.E.St. Elektronik GmbH, Mr Ulrich Walter has decided to begin his well derserved retirement and to sell the company to new owners. This step has been very carefully prepared over the last months with the new owners, namely Thomas Helpenstein and the Swedex Holding GmbH. Based on that, we would also like to announce that Thomas Helpenstein will be named managing director of W.E.St. Elektronik GmbH, effective October 1st, 2019.

The Swedex Holding GmbH has established its market presence by the Swepro group for more than 30 years, as a specialized supplier of innovative and sophisticated pneumatic solutions including industrial tools and the broadest offering of air nozzles, complemented by electrostatic solutions. The Swepro group currently employees over 100 people in 13 countries globally.

Thomas Helpenstein has made his career in developing and marketing of industrial control device. He has held positions in engineering, product management and business management with global responsibility for a wide range of industrial components used for machinery automation and functional safety for machinery.

Affiliating with a solid corporate business offers a wide range of opportunities for collaboration and to leverage each other’s competencies and resources. With this and together with Thomas Helpenstein‘s broad experience we strongly believe that the W.E.St. Elektronik GmbH is very well prepared to foster our key competencies, evolve products and technologies and expand their distribution in future.

We will continue to focus on developing and expanding our offering of electronic control modules for hydraulic applications, especially complementing this offering by network based components to provide a contemporary solution for your hydraulic system with seamless integration with superior controls (PLC).

Customer loyalty and a close relationship has been and will be a key value for us. Therefore, the team and location of W.E.St. Elektronik GmbH will remain as is so that nothing changes for you! Please use the same contacts as usual and place your orders via email, fax or phone etc. as before.

Finally, we would like to thank Elke Walter and Ulrich Walter for the the last 20 years and wish all the best for their retirement!
